Schumacher LD3 5 Gear Gearbox Conversion

Willspeed, the home of #5gear are pleased to release our first drop fit 5 gear gearbox casing/conversion on the Schumacher LD3 platform.

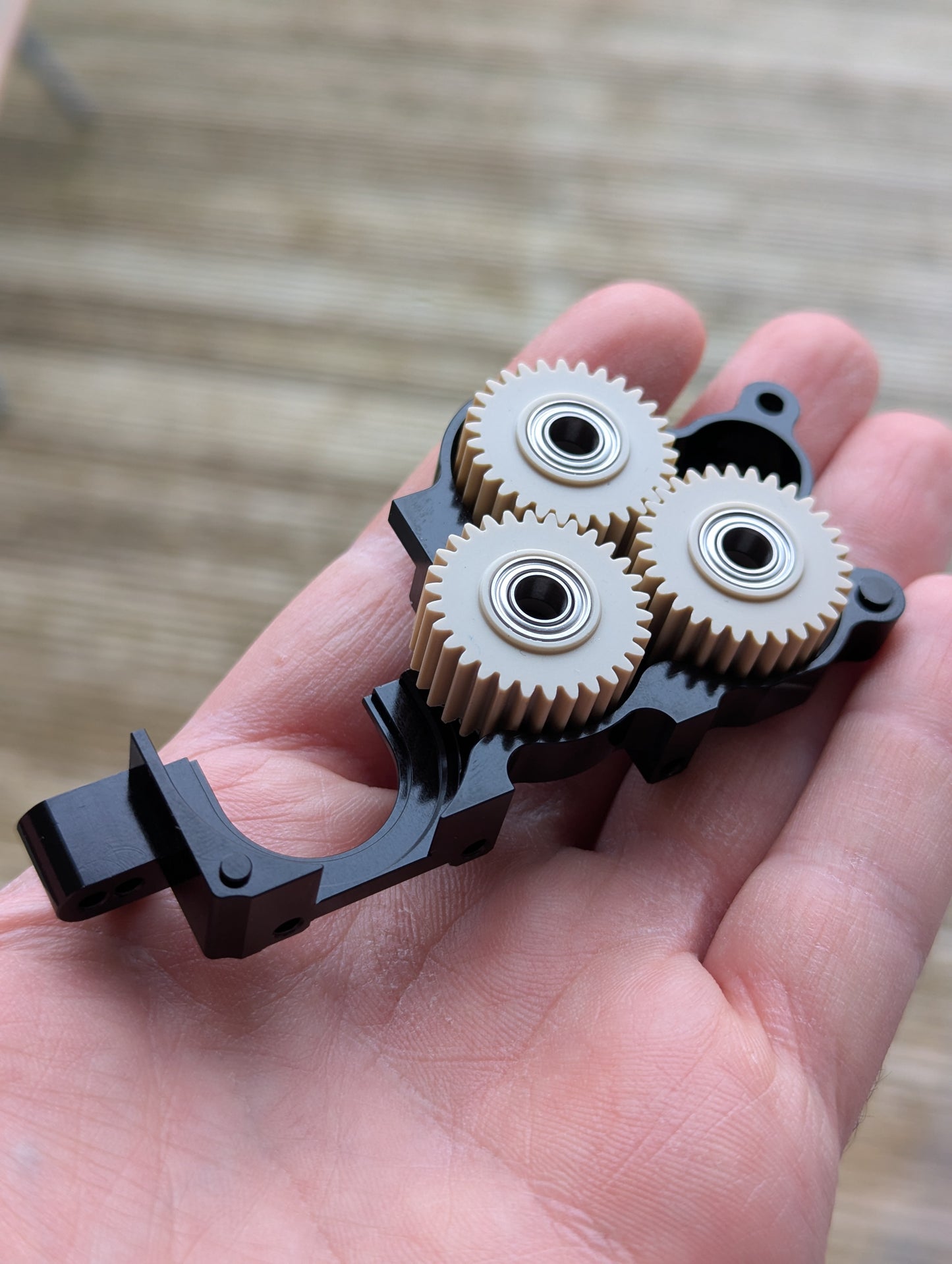

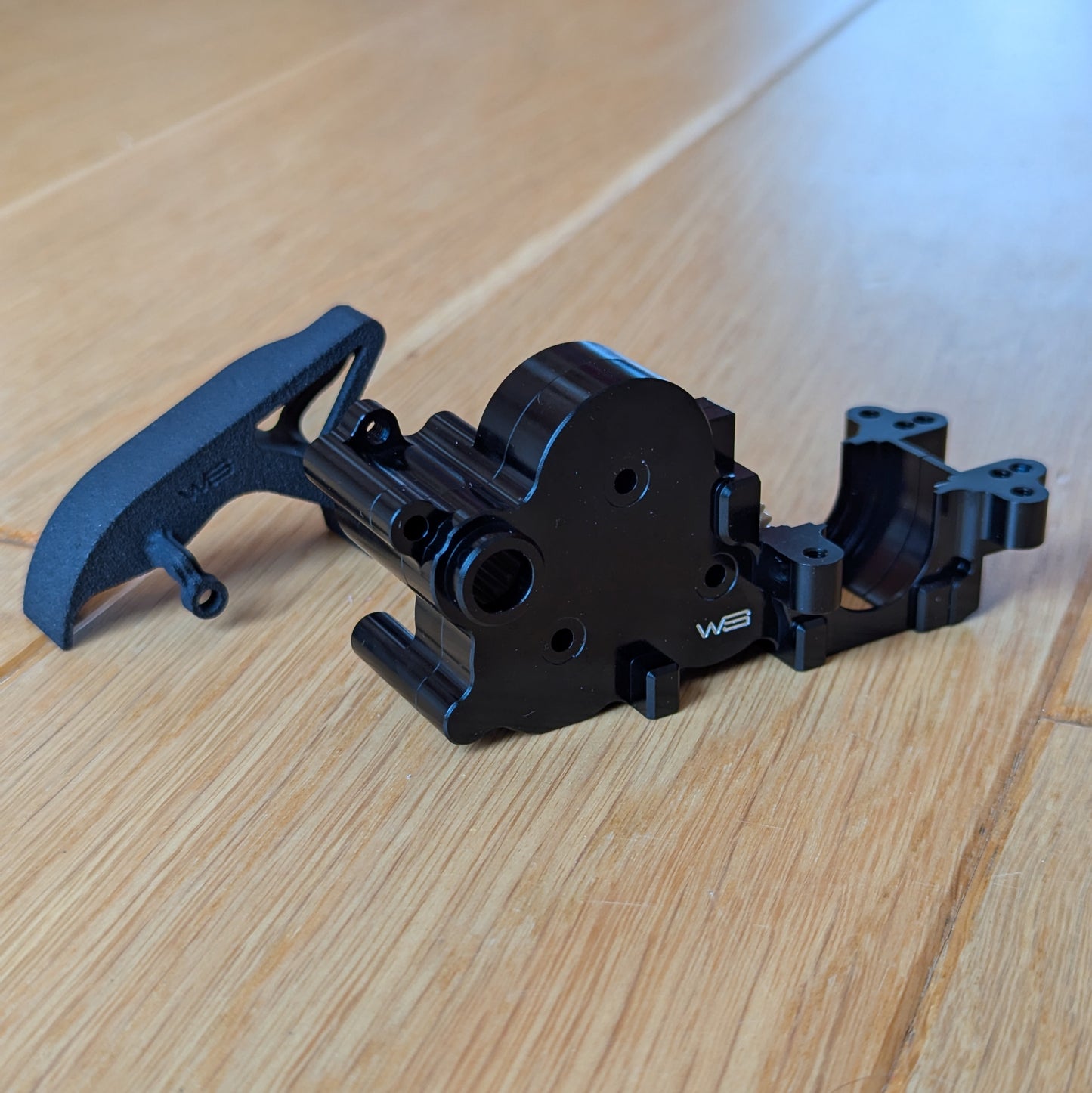

This is an inclusive conversion that includes two aluminium machined case halves, hardware and enclosed gear cover to fit that 5 gear goodness to your Schumacher LD3.

The gearbox relocates the motor +21mm further forward compared to the standard location, a popular setup option in modern off road buggy racing for improving corner speed in medium to high traction scenarios.

We have selected the idler gear size to maximise efficiency and reliability, maintaining a higher tooth count provides a fuller tooth engagement, notably even more so on the 32dp gear pitch that Schumacher uses.
Maintaining the same gear size as the standard LD3 also allows choice between using Schumacher's gears or our own WS PEEK gears.

The design retains the use of the original gearbox top to maintain the quick diff access.

Please note, due to the relocation of the motor, this also relocates the spur gear, meaning the bodyshell must be cut around our included enclosed gear cover.

Gearbox halves manufactured in 6082 Aluminium.
Gear cover manufactured from Nylon.

Regular price
£119.00 GBP
Regular price
Sale price
£119.00 GBP
Tax included. Shipping calculated at checkout.
With or Without Idler Gears
